A gate motor is one of those home features that you barely notice when it works and absolutely cannot ignore when it stops. Whether it is refusing to open at 7 am when you are late for work, grinding loudly every time it moves, or simply sitting dead after a power surge, a faulty gate motor causes daily frustration and — more importantly — compromises the security of your property.
At MDEE Electrical, gate motor installation, repair, and maintenance is one of our most in-demand residential services. In this comprehensive guide we walk you through everything: the different types of motors available in South Africa, what affects their lifespan, common faults we see in the field, and how to choose the right motor for your gate and property.
Types of Gate Motors Available in South Africa

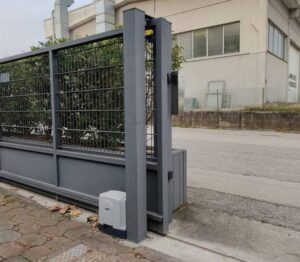

Slide Gate Motors
Slide (or sliding) gate motors are the most common type in South African residential properties. The gate rolls horizontally on a track along the driveway, driven by a rack and pinion gear system. They are suited to properties with limited space in front of the gate, and they handle large, heavy gates better than swing motors. Popular brands include Centurion, CENTSYS, ET Systems, and BFT.

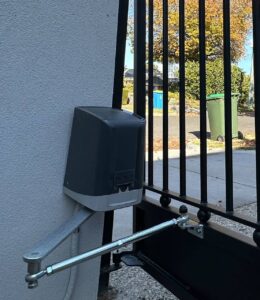

Swing Gate Motors
Swing motors operate a single or double gate that opens inward or outward like a door. They require clear space in the swing arc and are generally suited to lighter, shorter gates. They tend to be quieter than slide motors and give a more premium appearance, making them popular on estates and security complexes.

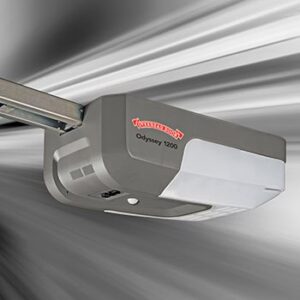

Overhead (Garage) Door Motors
While technically a different product category, garage door motors are closely related and MDEE Electrical installs and repairs these as well. They drive a sectional or single-panel door upward on a track and are almost always paired with a remote and safety obstruction sensors.
What Determines How Long Your Gate Motor Lasts?
- The single biggest factor. A residential motor rated for 200 cycles per day will wear out in months if it is installed at a busy business entrance doing 800 cycles per day. Cycle count
- South Africa’s grid voltage fluctuates, and load shedding introduces power-on surges when supply returns. Without proper surge protection and a battery backup system, motor electronics fail prematurely. Power quality
- A motor on a poorly maintained track — one with debris in the channel, a bent rack, or uneven ground — works harder than necessary and wears out faster. Track and rack condition
- An incorrectly set limit switch, a motor mounted on an unstable pillar, or a rack that is not properly aligned with the pinion will all shorten motor life significantly. Installation quality
- Most manufacturers recommend lubricating the rack and checking the battery every six months. In our experience fewer than 10% of residential homeowners do this. Maintenance frequency
The Most Common Gate Motor Faults We See
Battery Failure
Most slide and swing gate motors contain a sealed lead-acid battery that allows the gate to operate during power cuts. These batteries have a typical lifespan of two to three years. When the battery fails, the gate may still operate on mains power but will not work during load shedding — which is exactly when you need it most. Symptoms include a gate that opens slowly, stops partway, or makes a clicking sound from the motor unit.
Damaged Rack or Limit Switch
If your gate reverses unexpectedly before it fully opens or closes, the limit switch — a small sensor that tells the motor when the gate has reached the end of its travel — may be damaged, misaligned, or contaminated with debris. Alternatively, the gear rack may have a bent or missing tooth that causes the motor to lose traction.
Blown Control Board
A power surge (often from load shedding restoration) can destroy the motor’s control board — the electronic brain that interprets remote signals, manages limits, and controls motor direction. Control board replacement is possible on most popular brands but can cost R800 to R3 000 depending on the model. In some older motors, finding a replacement board is no longer possible and full replacement becomes necessary.
Motor and Gearbox Wear
After several years of operation, the brushes, gears, and bearings inside the motor mechanism wear down. You will typically notice this as increased operating noise, slower movement, or occasional stalling. Gearbox oil contamination from a failed seal is another common finding in older units.
What to Expect from a Professional Gate Motor Installation
A proper MDEE Electrical gate motor installation begins with an assessment of your gate’s weight, width, and the terrain of your driveway. We calculate the correct motor rating for your cycle count, ensure the mounting pillar is structurally sound, set and test limit switches in both directions, install a safety obstacle sensor if required, fit and test the battery backup, commission all remotes, and connect backup power where requested. Every installation complies with SANS 10142-1 and relevant South African Consumer Protection Act requirements.
Tip from our team: Always ask your installer what duty cycle the motor is rated for and compare it honestly to how many times your gate opens and closes per day. Undersizing a motor for its application is the number-one cause of premature failure we see.
